HDUC001AAP

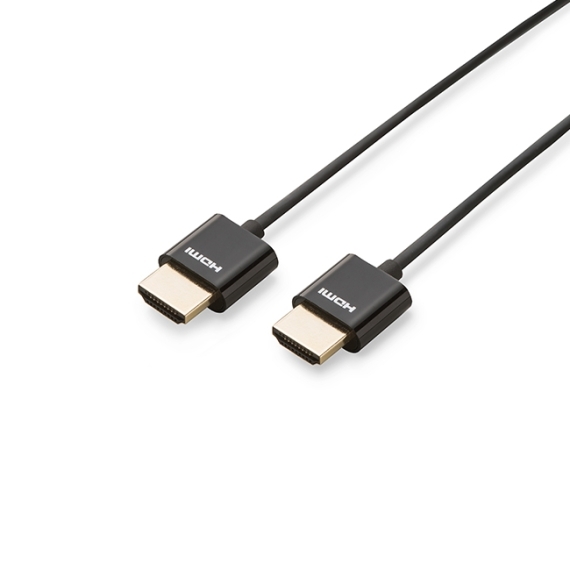

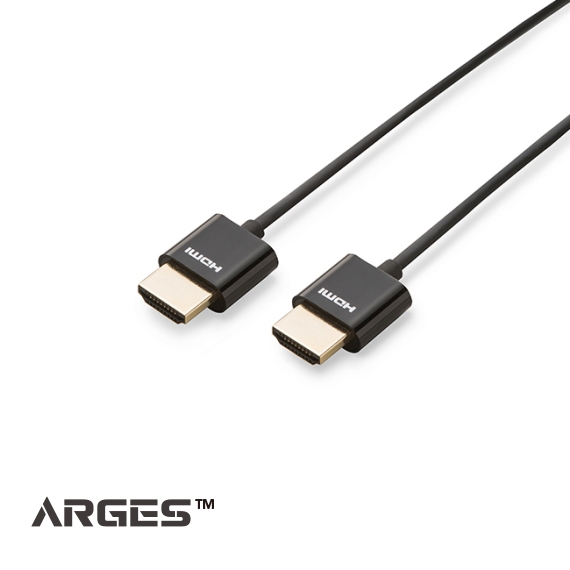

Ultra-slim High Speed HDMI® Cable
1M 1.5M
DESCRIPTIONS
Elka is at leading position in the HDMI cable manufacturing industry. We develope HDMI® cables with various characteristics for customers to use in assorted applications. Especially we have strong know-how in producing the super long and the super thin cables. Our cable's categories range from HDMI® 2.1 to HDMI® 1.X.
Elka's Ultra-slim High Speed HDMI® cable complies with the HDMI® 1.4b specification and can support video resolutions up to 4K at 24Hz. This cable is the purpose of displaying the higher audio and video quality for commercial applications.
Elka's Ultra-slim High Speed HDMI® cable complies with the HDMI® 1.4b specification and can support video resolutions up to 4K at 24Hz. This cable is the purpose of displaying the higher audio and video quality for commercial applications.
FEATURES
．70% thinner than standard HDMI
．Ultra-thin up to 36 AWG
．Supports video resolutions up to 4096x2160p@24Hz
．Eco-friendly, RoHS compliance
．Gold-Plated, OD=2.7MM
．With HEAC / without HEAC
．Ultra-thin up to 36 AWG
．Supports video resolutions up to 4096x2160p@24Hz
．Eco-friendly, RoHS compliance
．Gold-Plated, OD=2.7MM
．With HEAC / without HEAC
APPLICATIONS
．Mobile Phones, Notebooks, or Computers
．Monitors, Projectors, and TVs
．Digital Still Cameras
．TV Set Top Boxes
．Monitors, Projectors, and TVs
．Digital Still Cameras
．TV Set Top Boxes
| ITEM | CONTENT |
| Cable Length | 1M、1.5M |
|---|---|
| Wire Gauge | 36AWG |
| OD | 5.0mm |
| Max Bandwidth | 18Gbps |
| Resolution | Up to 4K/2K at 24Hz* |
| Jacket | Black PVC |
| Plug 1 | HDMI Type A (Gold Plated) |
| Plug 2 | HDMI Type A (Gold Plated) |
