CHH001

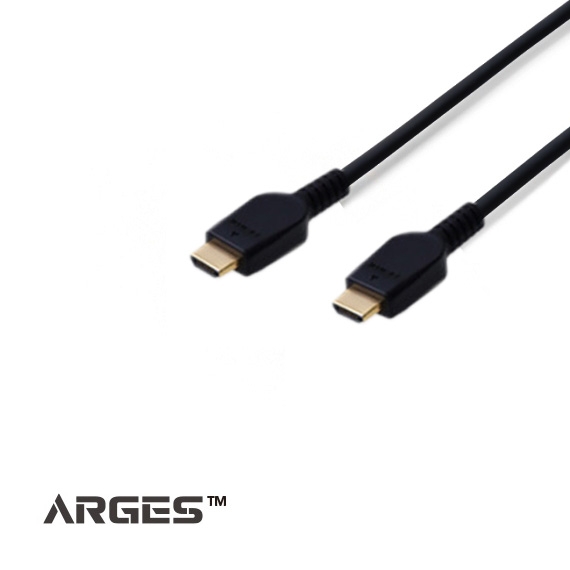

Ultra High Speed HDMI®/TMCable
0.5M 1M 1.5M 2M 2.5M 3M 4M 5M 3ft 4.5ft 6ft 9ft 12ft 15ft
DESCRIPTIONS
Elka is at leading position in the HDMI cable manufacturing industry. We develope HDMI® cables with various characteristics for customers to use in assorted applications. Especially we have strong know-how in producing the super long and the super thin cables. Our cable's categories range from HDMI® 2.1 to HDMI® 1.X.
Elka's 8K UHD HDMI® cable complies with the HDMI® 2.1 specification and can support video resolutions up to 10K at 120Hz*. This cable is the purpose of displaying the most advanced audio and video quality for commercial applications.
*Require Display Stream Compression (DSC)
Elka's 8K UHD HDMI® cable complies with the HDMI® 2.1 specification and can support video resolutions up to 10K at 120Hz*. This cable is the purpose of displaying the most advanced audio and video quality for commercial applications.
*Require Display Stream Compression (DSC)
FEATURES
· HDMI® Ultra High Speed ATC Certification
· Supports higher video resolutions up to 10K (10240×4320) at 120Hz*
· Supports higher speed bandwidth to 48Gbps
· Supports Dynamic HDR, enhanced Audio Returned Channel (eARC), and Auto Low Latency Mode (ALLM)
· Supports higher video resolutions up to 10K (10240×4320) at 120Hz*
· Supports higher speed bandwidth to 48Gbps
· Supports Dynamic HDR, enhanced Audio Returned Channel (eARC), and Auto Low Latency Mode (ALLM)
APPLICATIONS
· Mobile Phones, Notebooks, or Computers
· Monitors, Projectors , TVs
· Digital Still Camera
· TV Set Top Box
· Monitors, Projectors , TVs
· Digital Still Camera
· TV Set Top Box
| ITEM | CONTENT | |||||||||||||
| Cable Length | 0.5M | 1M | 1.5M | 2M | 2.5M | 3M | 4M | 5M | 3ft | 4.5ft | 6ft | 9ft | 12ft | 15ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | CHH001 | CHH001-03-1 | CHH001-02-1 | CHH001-03-2 | CHH001-02-2 | CHH001-01-1 | CHH010-01-3 | CHH010-01-4 | CHH001-04-1 | CHH001-04-4 | CHH001-04-2 | CHH001-04-3 | CHH010-01-1 | CHH010-01-2 |
| Wire Gauge | 32AWG | 32AWG | 32AWG | 30AWG | 30AWG | 28AWG | 26AWG | 26AWG | 30AWG | 30AWG | 30AWG | 30AWG | 26AWG | 26AWG |
| OD | 5.0mm | 5.0mm | 5.0mm | 6.0mm | 6.0mm | 6.8mm | 8.0mm | 8.0mm | 6.0mm | 6.0mm | 6.0mm | 6.0mm | 6.0mm | 8.0mm |
| Max Bandwidth | 48 Gbps | |||||||||||||
| Resolution | Up to 10K at 120Hz* | |||||||||||||
| Jacket | Black PVC | |||||||||||||
| Plug 1 | HDMI Type A (Gold Plated) | |||||||||||||
| Plug 2 | HDMI Type A (Gold Plated) | |||||||||||||
| Compliance | HDMI 2.1 specification |
