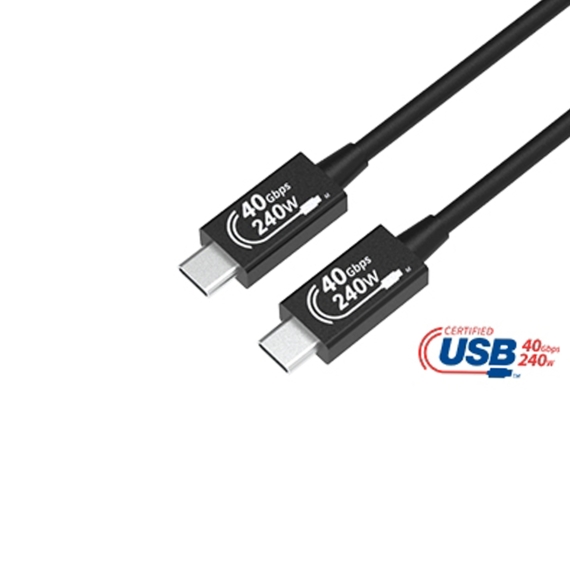

U440E*
USB4 PD3.1 240W EPR Cable
0.3M 0.5M 0.7M 0.8M 1M
DESCRIPTIONS
USB is one of Elka’s main product lines. Elka has a full range of certified USB cables, covering USB-C™, Standard-A, Standard-B and Micro-B. Elka’s USB-C to C cable can support data transfer rate up to 10Gbps and a level of power up to 5A with 20V voltage. This cable is for the purpose of connecting your USB-C devices for data transfer, fast charging, or video display.
FEATURES
．Certified by USB-IF
．E-mark chipset embedded
．Multi-site production and TAA are available
．Coaxial design for flexibility and durability
．Compliant with USB4 and backwards compatible with USB 3.2 Gen1/2 and USB 2.0 and TBT3 Supports data transfer rate up to 40Gbps and fast charging up to 5A
．Supports video display up to 8K through
．DisplayPort™ Alternate Mode
．More than 10,000 bending cycles
．E-mark chipset embedded
．Multi-site production and TAA are available
．Coaxial design for flexibility and durability
．Compliant with USB4 and backwards compatible with USB 3.2 Gen1/2 and USB 2.0 and TBT3 Supports data transfer rate up to 40Gbps and fast charging up to 5A
．Supports video display up to 8K through
．DisplayPort™ Alternate Mode
．More than 10,000 bending cycles
APPLICATIONS
．Notebook PC
．Power
．USB Hard Disk Drive
．Power
．USB Hard Disk Drive
| ITEM | CONTENT | ||||
| Part Number | U440E0301 | U440E0501 | U440E0701 | U440E0801 | U440E1001 |
|---|---|---|---|---|---|
| OD | 3.8 | 4.5 | 4.5 | 4.5 | 4.8 |
| Bending Radius | 7.6 | 9 | 9 | 9 | 9.6 |
| Length | 0.3 | 0.5 | 0.7 | 0.8 | 1.0 |
| TID | 7789 | 7735 | 7734 | 7733 | 7732 |
| Supported USB Spec | USB 4 Gen3 (40 Gbps) | ||||
| Jacket | FRPE (Halogen Free) | ||||
| Plugs | USB-C Male on both ends, Nickel-Plated | ||||
| Housings | PC + ABS (Halogen Free) | ||||
| Output Current and Voltage | 5A/48V (240W) | ||||
| Compliance | RoHS, REACH |
